1500W Prismatic Battery Laser Welding Machine With Fiber Laser Generator For Lithium Ion Battery Pack
Product Description
ACEY-LWM1500Z Gantry continuous laser welding machine with galvanometer adopts international advanced fiber laser source, combined with ours independent research and development design, with good rigidity, stability; to precision guide rail drive operation, configured with high-response servo motors, high precision, high speed; mainly for the prismatic, pouch lithium battery PACK assembly process
Product Features
1.With high power fiber continuous laser, sufficient power, fast speed, high precision, stable welding quality.
2.Maximum support for 6-axis motion control, can be linked to the automatic line, or stand-alone operation.
3.Configuration of high power galvanometer, with XY gantry motion platform, can be convenient to weld a variety of complex graphic trajectories.
4.Specialized software, welding process expert, perfect data saving and calling function, with powerful drawing and editing graphic function.
5.With CCD monitoring system, convenient for debugging, can monitor the welding quality in real time. (optional)
6.With infrared positioning system, can quickly locate the welding position and focal length of the product, simple and convenient to get started. (optional)
7.Powerful water cooling circulatory system, can make the laser welding machine always keep a constant temperature state, improve the welding quality and extend the service life of the machine.
Main Technical Parameter
| Laser Output Power |
1500W |
| Galvanometer Power |
1500W |
| CCD |
1.3 Megapixel, Anti-Flash |
| Air Blow Blade |
Single layer |
| Cooling Machine |
1.5P |
| X-axis Travel |
800mm |
| Y-axis Travel |
600mm |
| Z-axis Travel |
400mm |
| Repeat Positioning Accuracy |
±0.02mm |
| Fiber Cable Length |
10m |
| Laser Wavelength |
1070nm |
| Output Method |
QBH |
| Cooling Method |
Water cooling |
| Motor |
400W servo motor |
| Working Voltage |
AC220V 50/60Hz |
| Reference Size |
L*W*H=1450*1050*2050mm |
| Weight |
350KG |

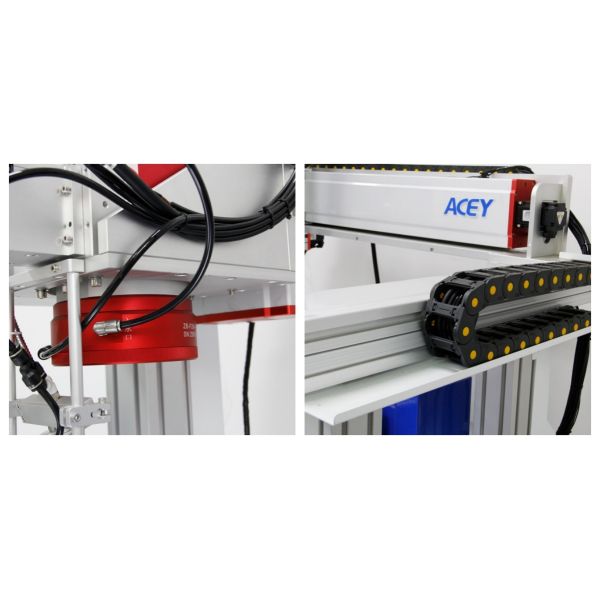

Product Display
